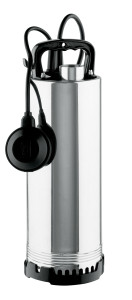

Vigila SS
Submersible pump for wastewater.
Pumping for evacuation, transfer and emptying of wastewater. Applications like emptying of flooded garages or basements, drains, residential sumps, water tanks or transfer of water from tanks and cisterns.
Features Vigila SS
Electrical features
- Electrical isolation: F Class
- Motor type: Asynchronous
- Protection rating: IP68
- Reset: Automatic
- Service factor: S1
Materials
- Discharge body: Stainless steel AISI 304
- Impeller/s: Technopolymer reinforced with steel
- Mechanical seal: Aluminium-Graphite
- O-rings: NBR/EPDM
- Pump body: Stainless steel AISI 304
- Pump shaft: Stainless steel AISI 420
- Suction body: Technopolymer
Manufacturing features
- Discharge connection type: Thread
- Discharge diameter: 1 1/4"
- Maximum solids passage (mm): 7
- Motor cooling: Water
- Seal type: Mechanical seal
Limitations
- Maximum submersion (m): 7
- Water temperature (ºC): Max: 40
