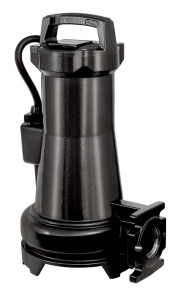

Drainex 600
Submersible pump for wastewater with solids in suspension, vortex system.
Pumping of evacuation, transfer and emptying of wastewater with solids in suspension. Applications like emptying of flooded garages or basements, drains, residential sumps, water tanks or transfer of water from tanks and cisterns.
Features Drainex 600
Electrical features
- Electrical isolation: F Class
- Motor type: Asynchronous
- Protection rating: IP68
- Service factor: S1
Materials
- Discharge body: Cast iron
- Impeller/s: Cast iron
- Mechanical seal: Aluminium-Graphite
- O-rings: NBR/EPDM
- Pump body: Cast iron
- Pump shaft: Stainless steel AISI 420
- Suction body: Cast iron
Manufacturing features
- Discharge connection type: Flange
- Discharge diameter: 65mm
- Maximum solids passage (mm): 65
- Motor cooling: Water
- Seal type: Double mechanical seal
Limitations
- Maximum submersion (m): 7
- Water temperature (ºC): Max: 40
